Conventional Rotators

Machine Features

Conventional Rotators

BCR

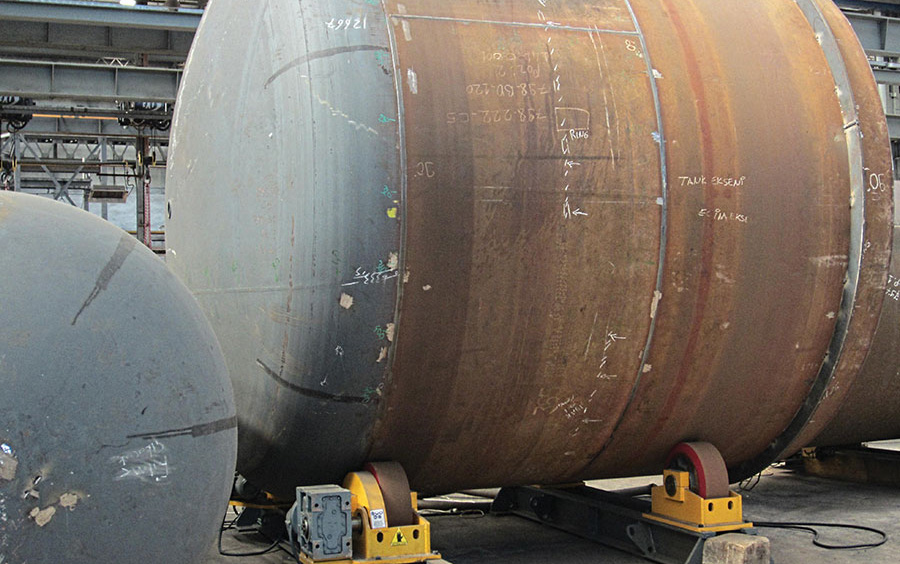

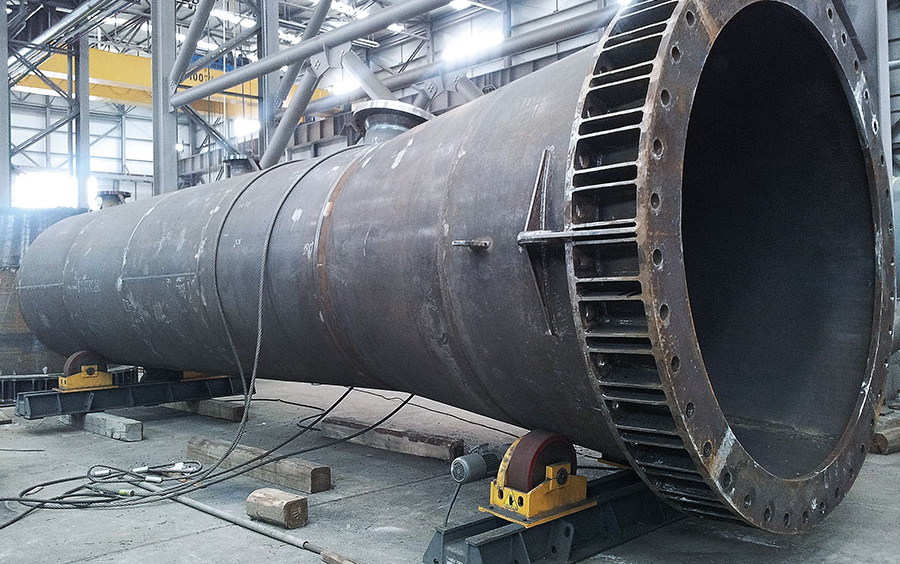

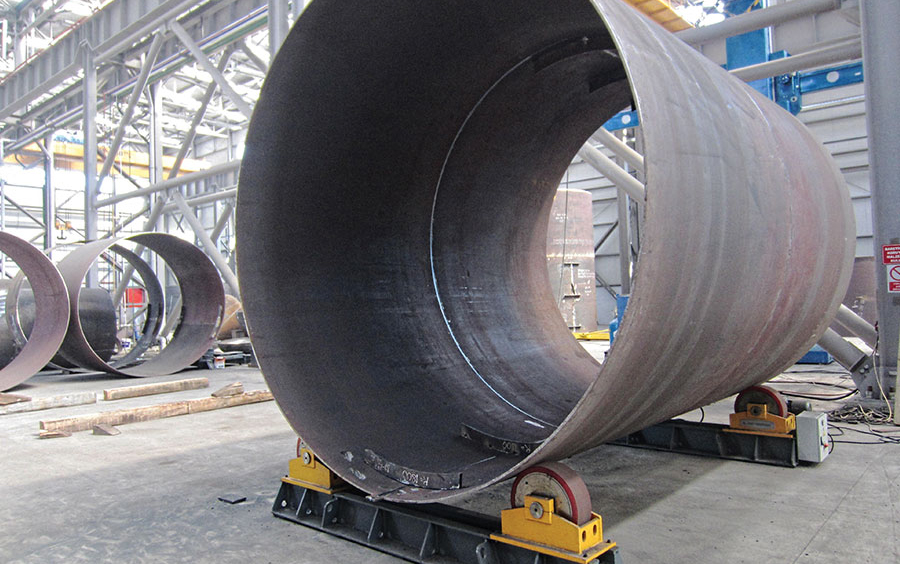

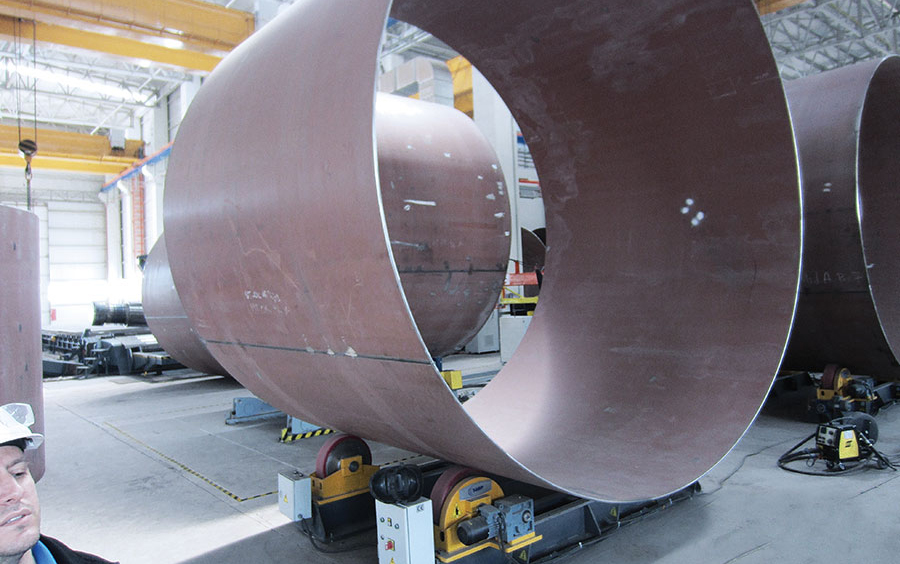

Conventional rotators are a high quality and economical solution for circular welding of cylindrical parts in cases that the diameter is not changing frequentl. Used for rotating circular parts such as tanks, pressure vessels, tower piping, boiler, silos, reactors, fuel drums etc.

Rotators improve the speed and efficiency both during automatic and manual welding and have an important funtions in steel construction workshops by minimizing over head crane usage.

Operators can rotate the pieces mounted on the rotator clockwise or counterclockwise, precisely, well-aligned and controllable via control panel, in easily adjustable speeds. Conventional rotators comprise of two units as 1 drive and 1 idle unit. Number of drive and idle units can be changed according to the application conditions.

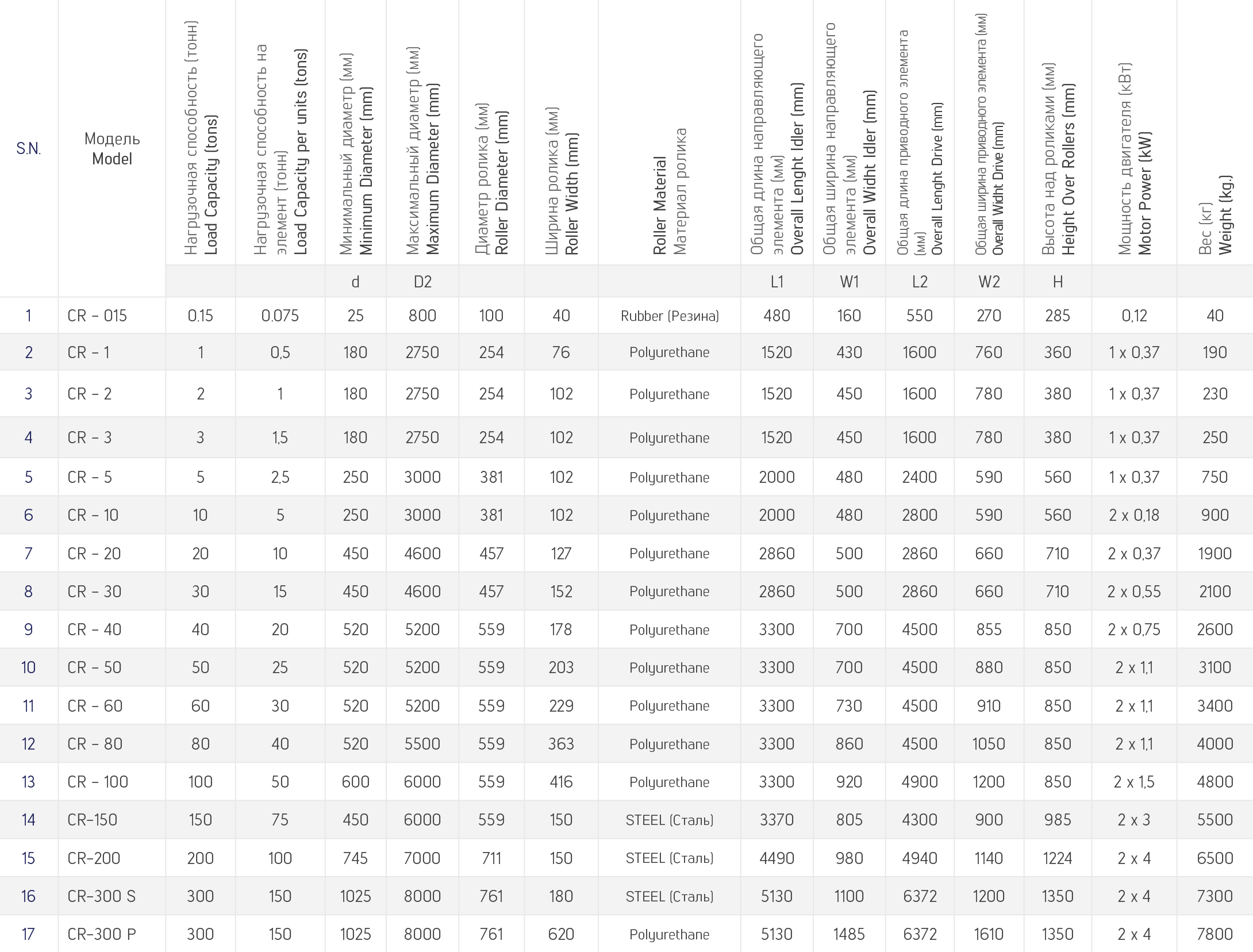

Akyapak Makine includes 1 to 300 tons conventional rotators in its standard lists. However, custom production can be realized up to 600 tons.

  • PU” wheels absorbing shocks and vibrations
  • Manual diameter adjustments
  • Adjustable rotating speed
  • Remote controller with 5 meter cable length
  • Digital speed indicator on the controller panel for monitoring rotation
  • Motors with brake & forced fan cooling
  • Custom wheel designs for areas that require high temperature
  • Automatic diameter / wheel axis adjustments (motor driven with worm gear spindle)
  • Axial movement on rail (automatic / manual)
  • Synchronous operation with column & boom systems
  • Earthing Brush
  • Compliance to Atex Certificate

BCR Application Areas

Silos

Wind Towers

Pressure Vessels

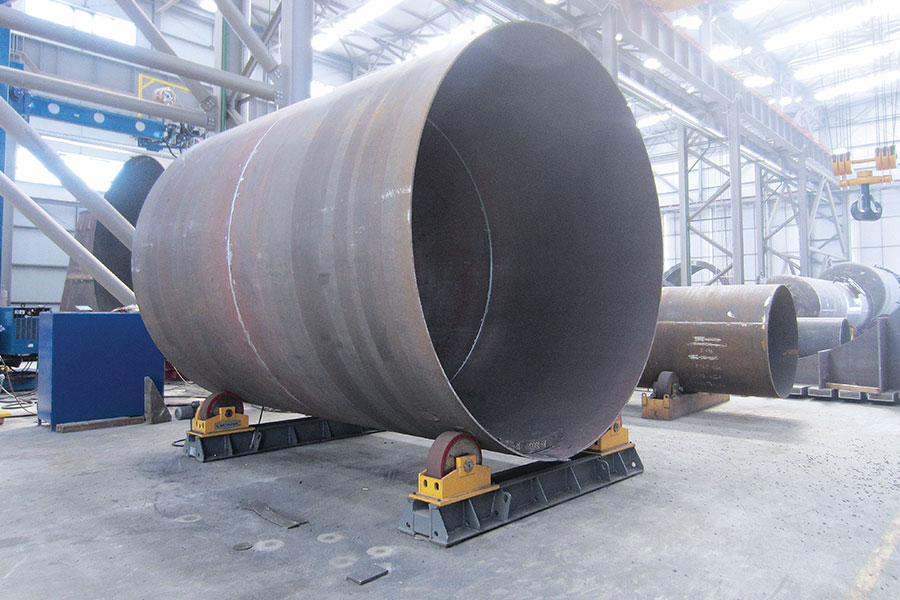

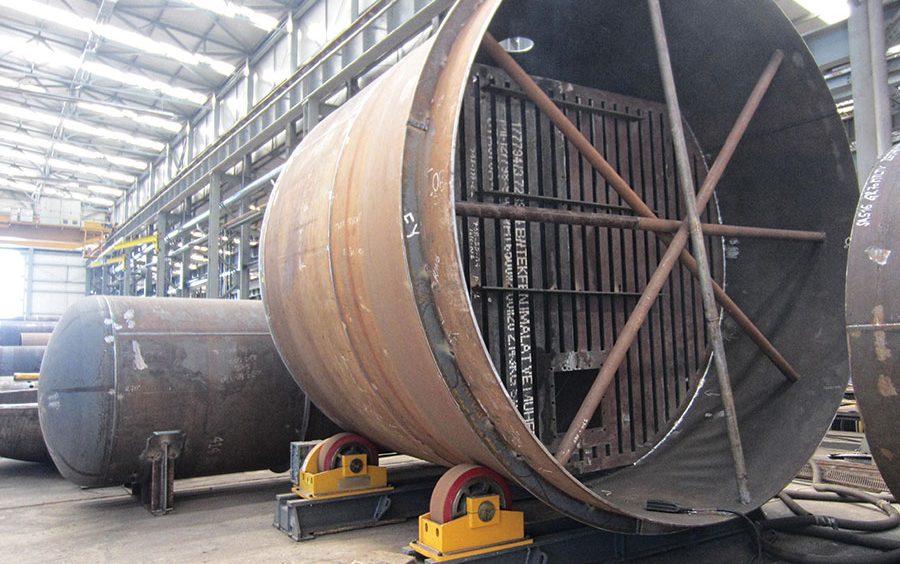

Photo Gallery
